Thermowells

content

Thermowells are used to protect a temperature sensor in environments where the sensor is not chemically compatible with the process media or the sensor does not have the mechanical strength to withstand the process flow or pressure. Thermowells also facilitate removing, changing, checking, or replacing sensors without draining the process system.

Specification

Specifications

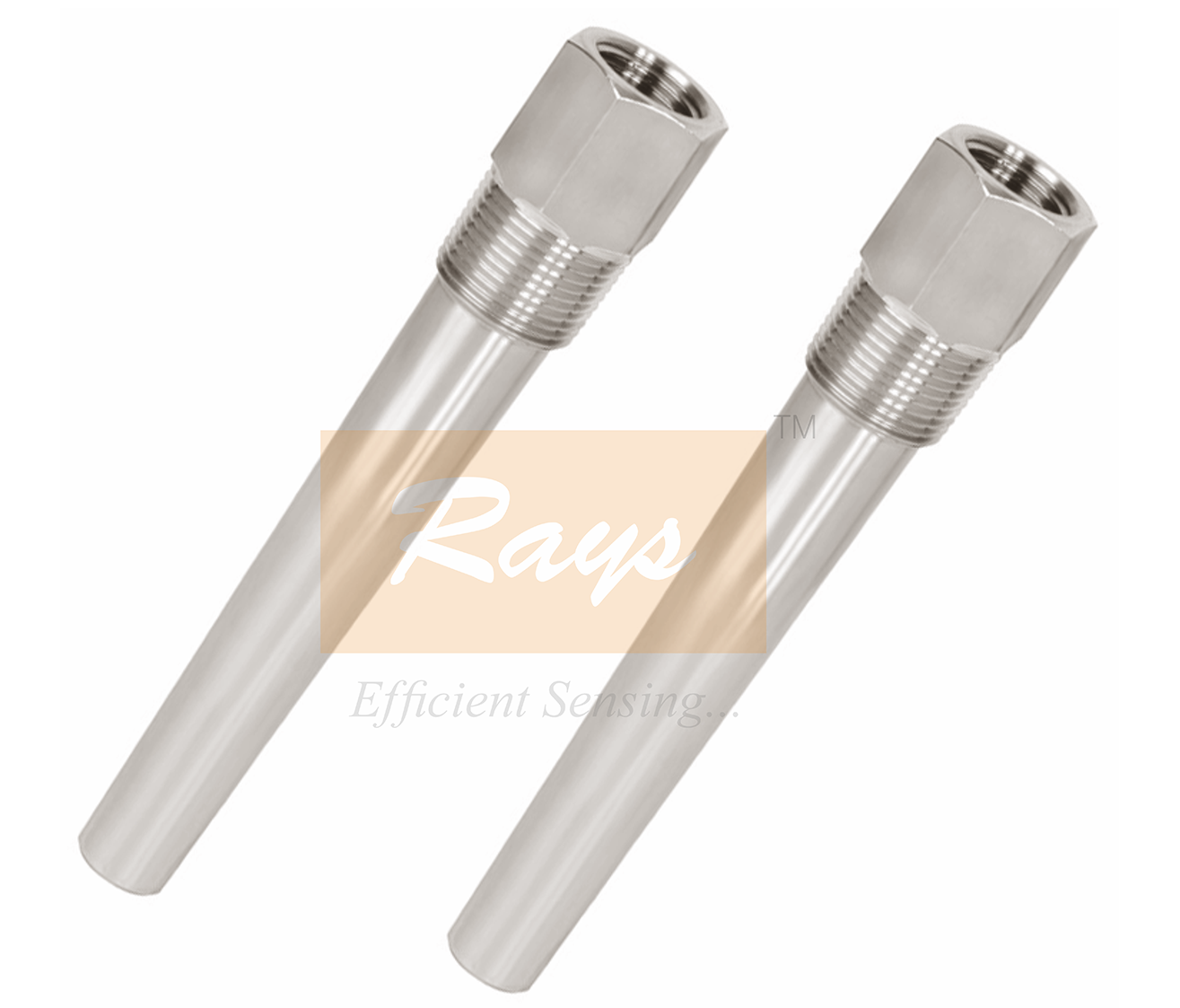

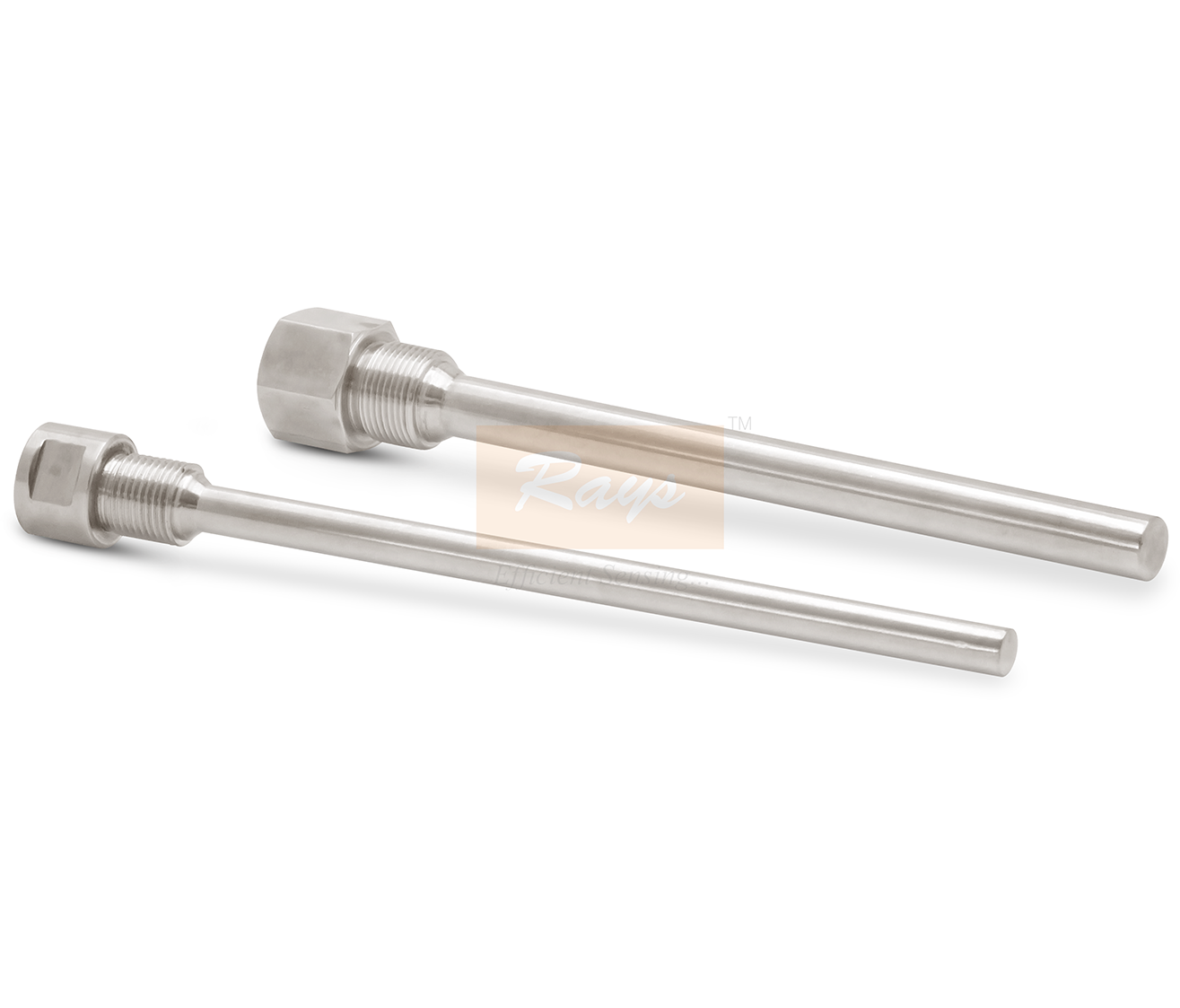

Types Fabricated/ Bar stock

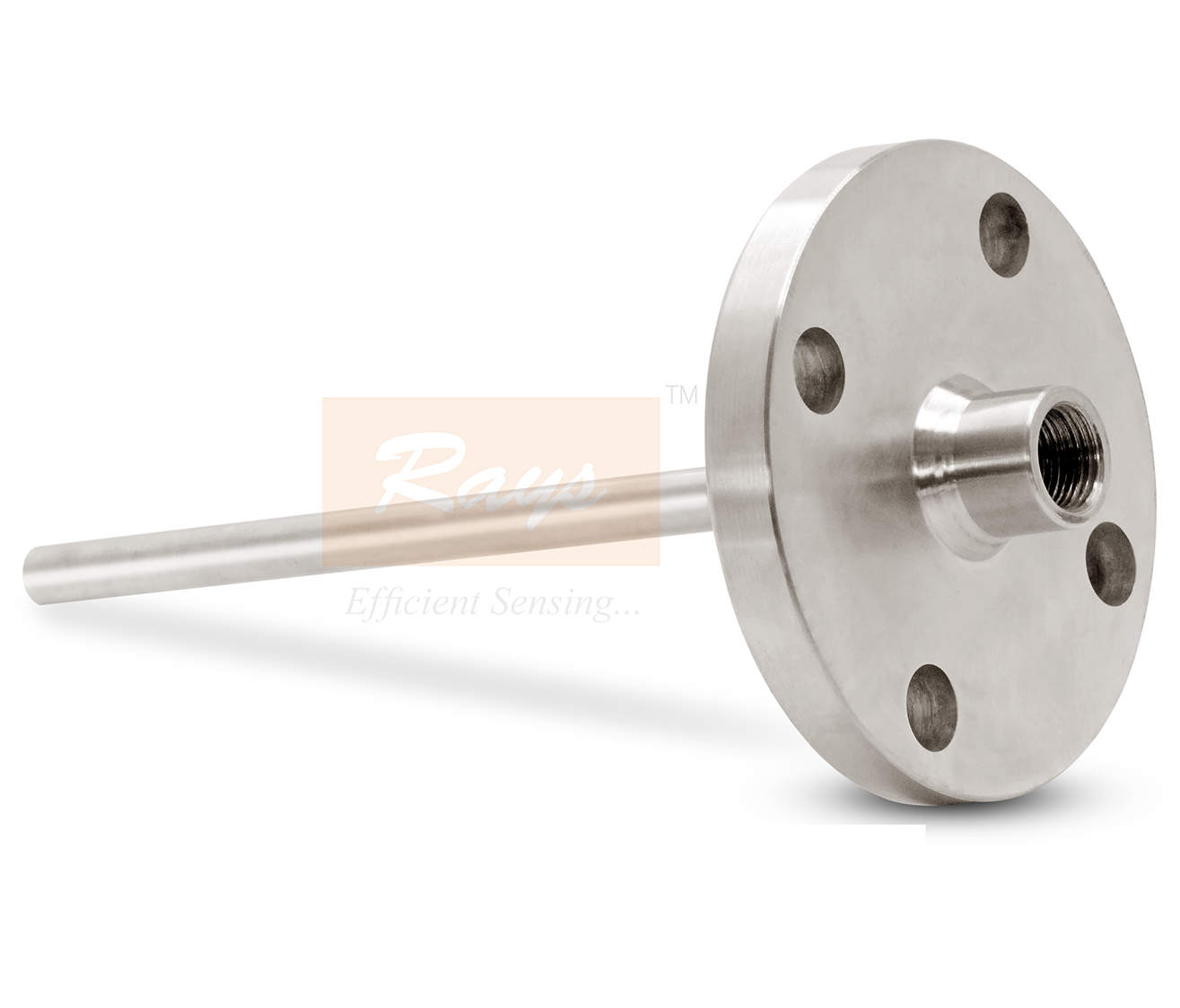

Threaded/ Flanged

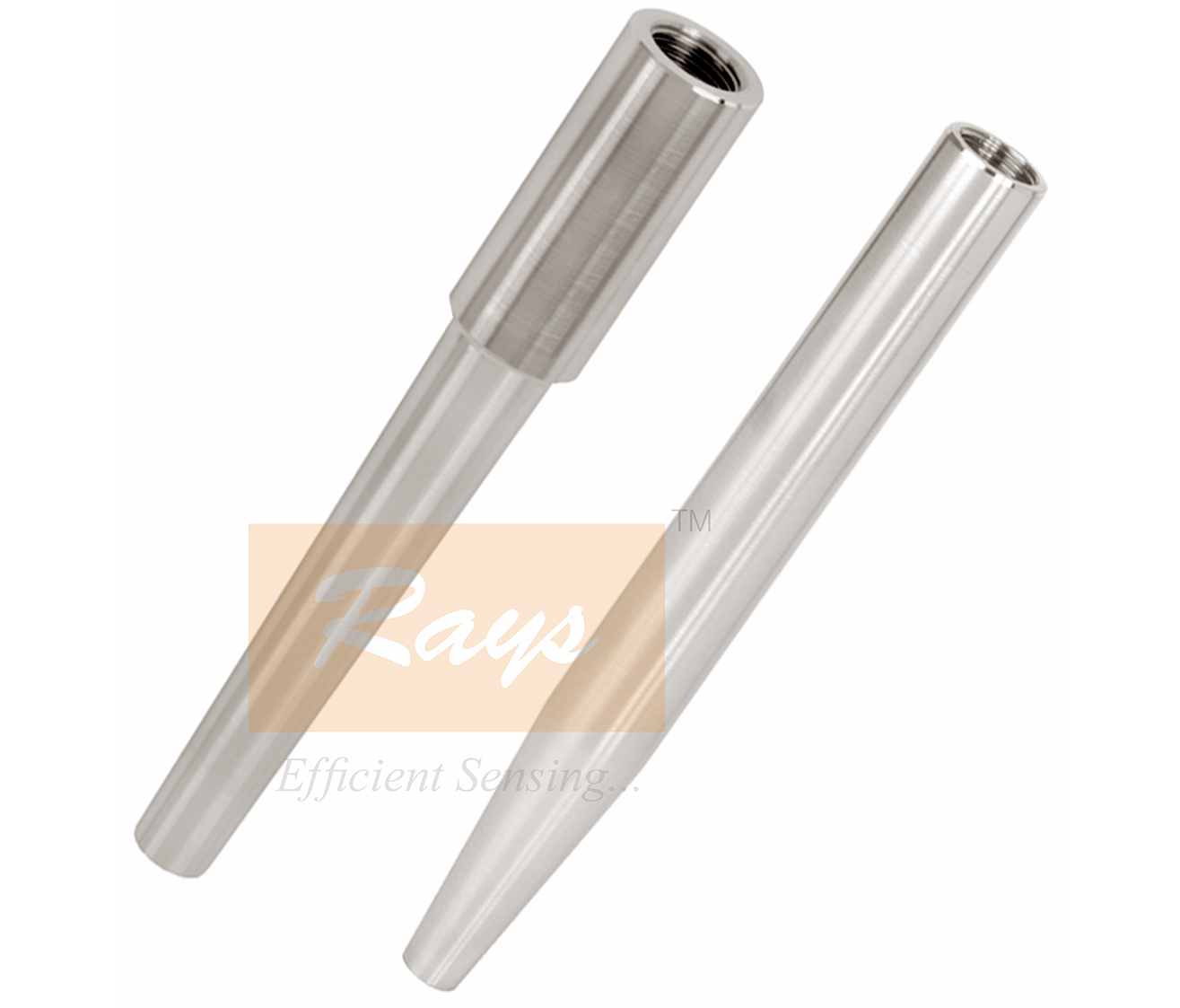

Socket-weld/ Weld-in

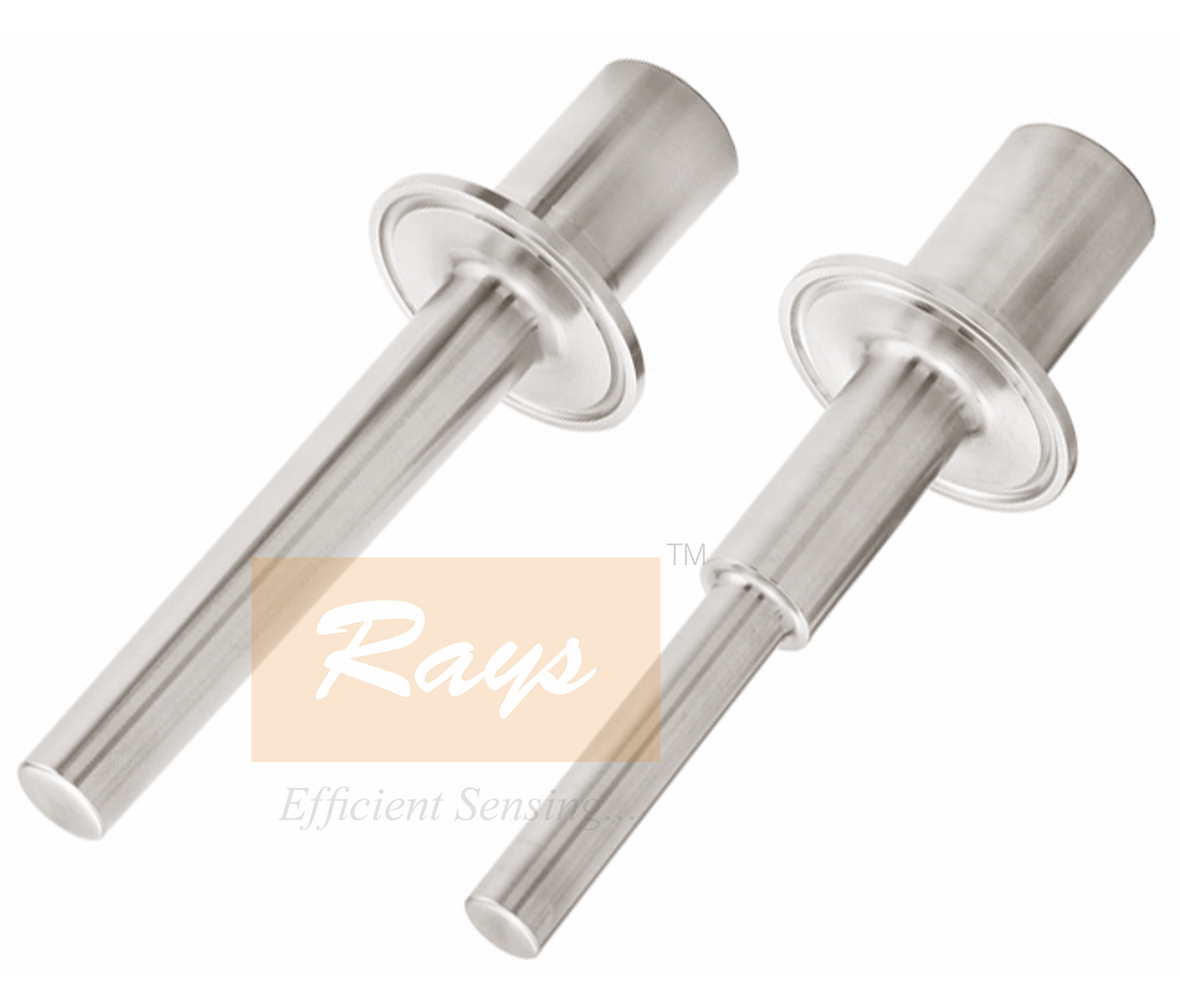

Sanitary

Van-stone

Shank Design Straight

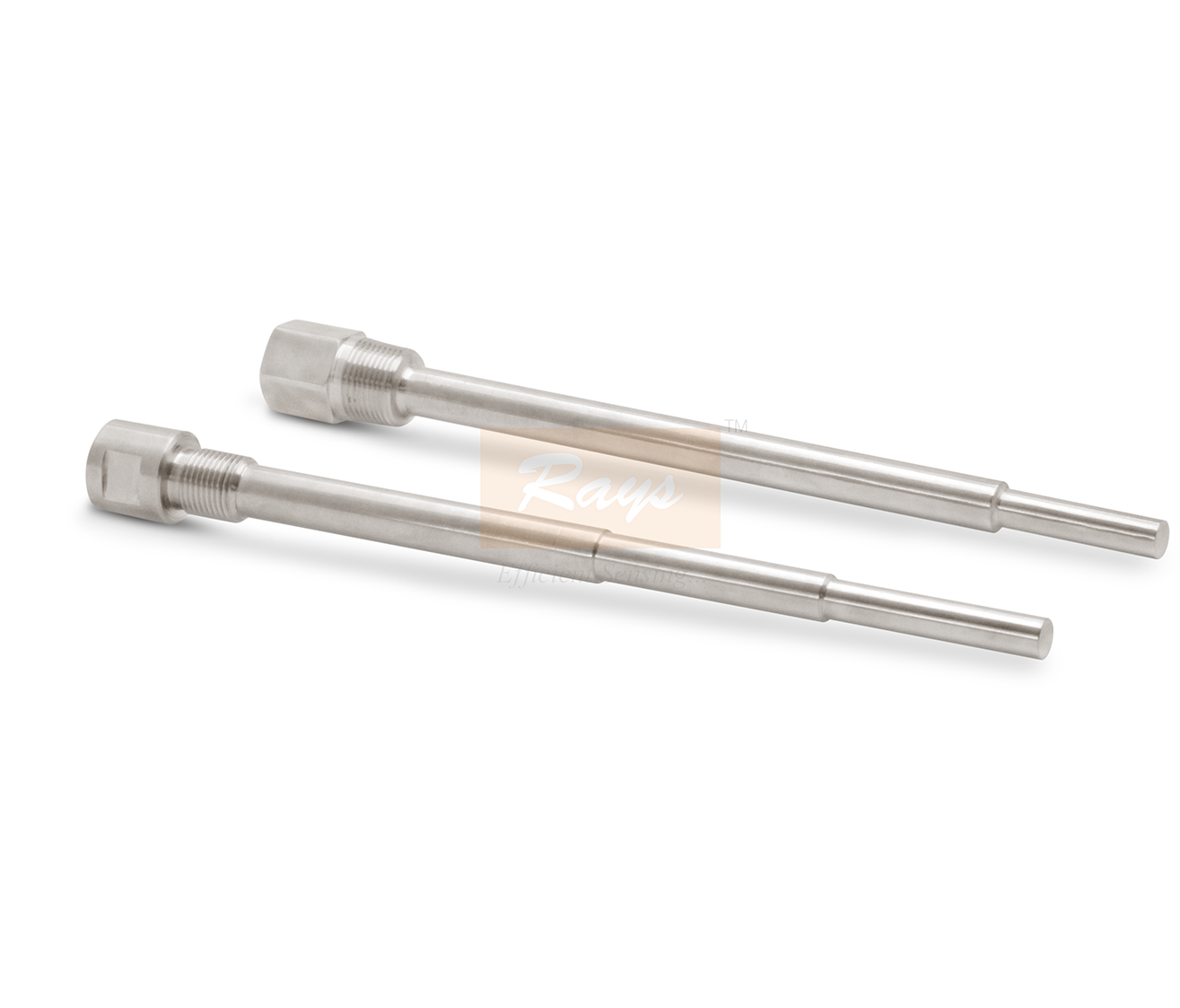

Stepped

Partial Taper

Taper

Material Brass, SS304, SS316, SS316L, Inconel-600, Monel, Hastalloy, Titanium, Ceramic  (Others on Request)
Mounting Flange (as per ANSI, BS or DIN) Thread (Process Threads NPT, BSP or Metric)




THERMOWELLS

1. Instrument Connection

2 .Flange size as per requirement

T. Extension Length

U. Immersion Length

A. Instrument Insertion Length

t. Tip Thickness

D1. Head Diameter

D2. Root Diameter

D3. Bore Diameter

D4. Tip Diameter
