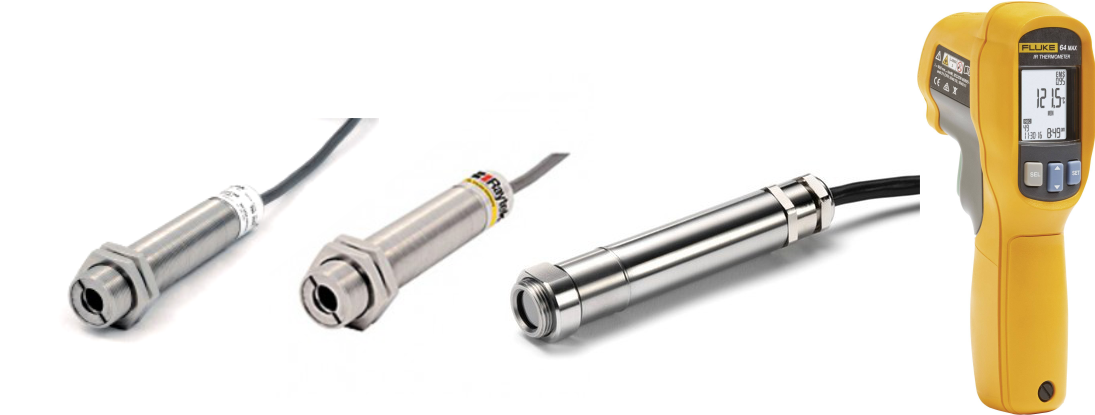

Non-Contact IR Sensors

Infrared Thermometer

Optical IR Temperature Sensors

Temperature Range 0 ˚C to 500 ˚C
Output Thermocouple Output ( J or K ) or Voltage
Power Supply 12 – 24 V DC
Cable length 1 meter standard
Environmental Rating  IP 65 (NEMA-4)
Storage Temperature -30ºC to 85°C (-22ºF to 185°F)
Relative Humidity 10 to 95%, non-condensing

Temperature Gun

Temperature range -30°C to 650°C (-22°F to 1202°F)
Accuracy ±1.0°C or ±1.0% of reading, whichever is greater
-10°C to 0°C: ±2.0
-30°C to -10°C: ±3.0
Response time (95%) < 500 ms (95% of reading)
Spectral response 8 to 14 microns
Emissivity 0.10 to 1.00
Optical resolution 12:1 (calculated at 90% energy)
Display resolution 0.1°C (0.2°F)
Repeatability of readings ±0.5% of reading or <±0.5°C (1°F), whichever is greater
