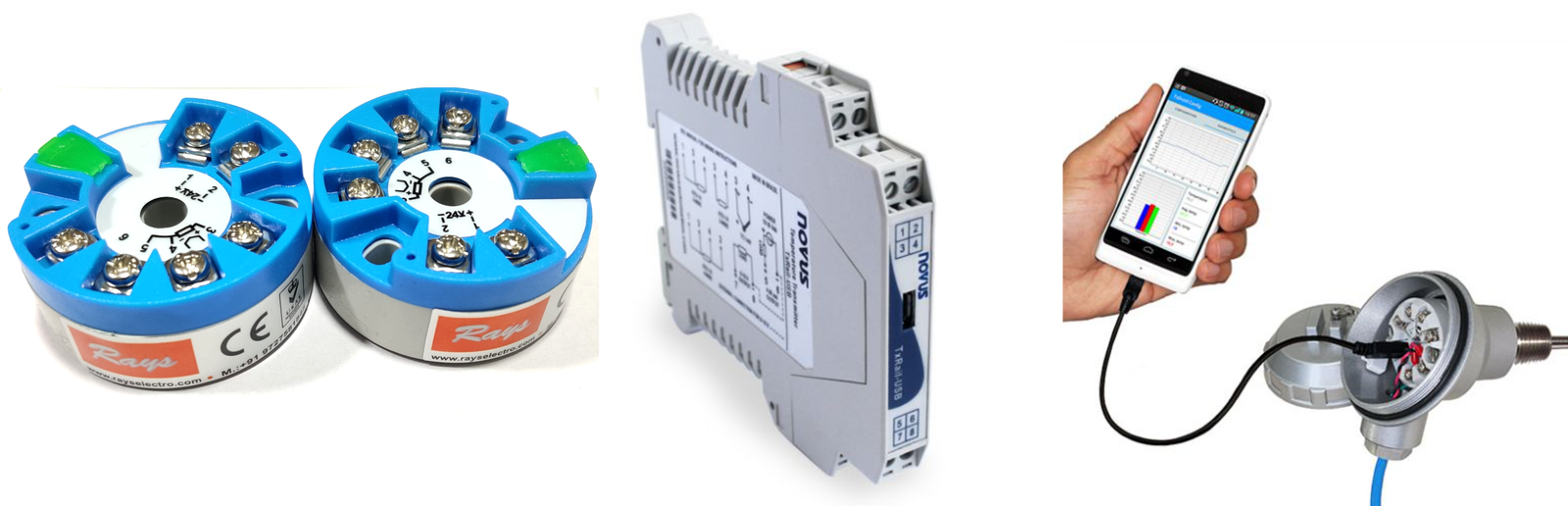

Temperature Transmitters

Temperature Transmitter Supplier

Temperature Transmitters
Features :
  • Programmable Working Range
  • Loop powered Linearized 4-20 mA or 20 to 4mA
  • Cold junction compensation for thermocouples
  • Cable resistance compensation on 3 or 4 wires Pt100 connection
  • Sensor break detection

Specifications :

TypeSmart HART or Non Smart
MountingHead Mount or DIN Rail Mount
CalibrationThrough Software (Factory Set) or Mobile App
Universal InputThermocouples J, K, T, E, N, R, S, B and Pt100, Pt1000
Power supply10 to 35 V DC
RTD Typical Accuracy± 0.1 % for Pt100 and Pt1000
Thermocouple and mV Typical Accuracy   ± 0.1 %
Working temperature-40 to +85 °C (-40 to 185 °F)
