Thermocouple Specifications

Type J, K, E, T, N, R, S, B
Configuration Simplex, Duplex
Temperature Range Upto1600° C
Element Mineral, Compact MgO (MI), Ceramic Beaded
 Sheath OD 1.6 mm, 3 mm, 4 mm, 6 mm, 8 mm for MI Thermocouples 10 mm, 12 mm, 14 mm, 16 mm, 19 mm, 21 mm, 25 mm for T/C with Protection Tube
 Sheath Material SS316, SS310, SS321, Inconel-600 as standard (Other on Request)
 Accuracy Standard/ Special
Junction Type Grounded, Ungrounded, Exposed
Cold End Enclosure/ Pot seal with extension cable/ Quick connect-disconnect plug and jack/ Spring loaded ceramic terminal block
Enclosure Die Cast Aluminum/ SS304/ SS316, single or double cable entry with 3/4” ET(F) cable entry as standard, 1/2” NPT(F) for well or nipple
Protection Weatherproof to IP-65, IP-67 Flameproof to Gr. IIA, IIB Flameproof to IIC ATEX certified CE certified
Process Connection 1/4” to 3/4” BSP/NPT (M) Welded or Compression Fittings, Adjustable or Fixed Flange, Nipple or Nipple-Union-Nipple Extension
Optional Accessories Head Mounted Temperature Transmitter Thermowell Various Cable Glands

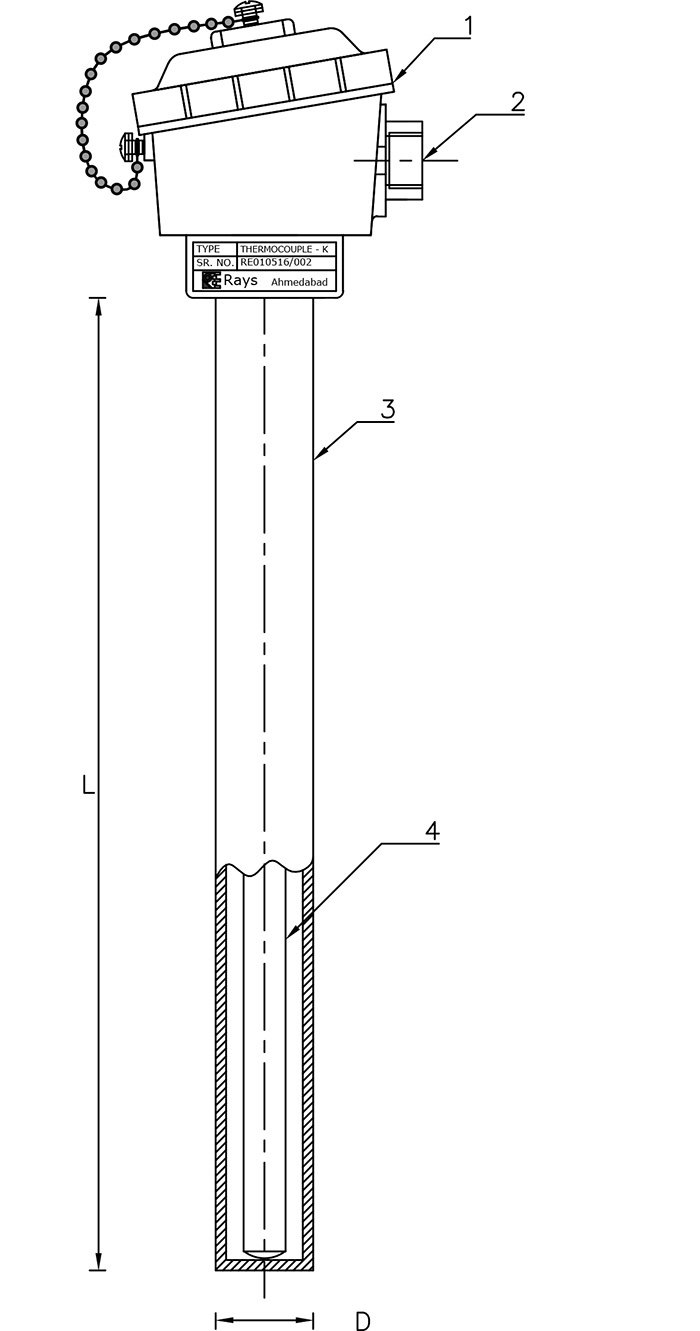

TC-DRAWING-Model
  • Enclosure

  • Cable Entry

  • Protection Sheath

  • Element
  • Sheath Length Below Head
  • Sheath Diameter
